Stop the Flip: Troubleshooting a Tripping AC Breaker

What an AC Circuit Breaker Keeps Tripping What It Means — and Why It Matters

An ac circuit breaker keeps tripping what it means is this: your air conditioner is pulling more electrical current than the circuit can safely handle, and the breaker is doing its job by cutting the power before wires overheat or a fire starts.

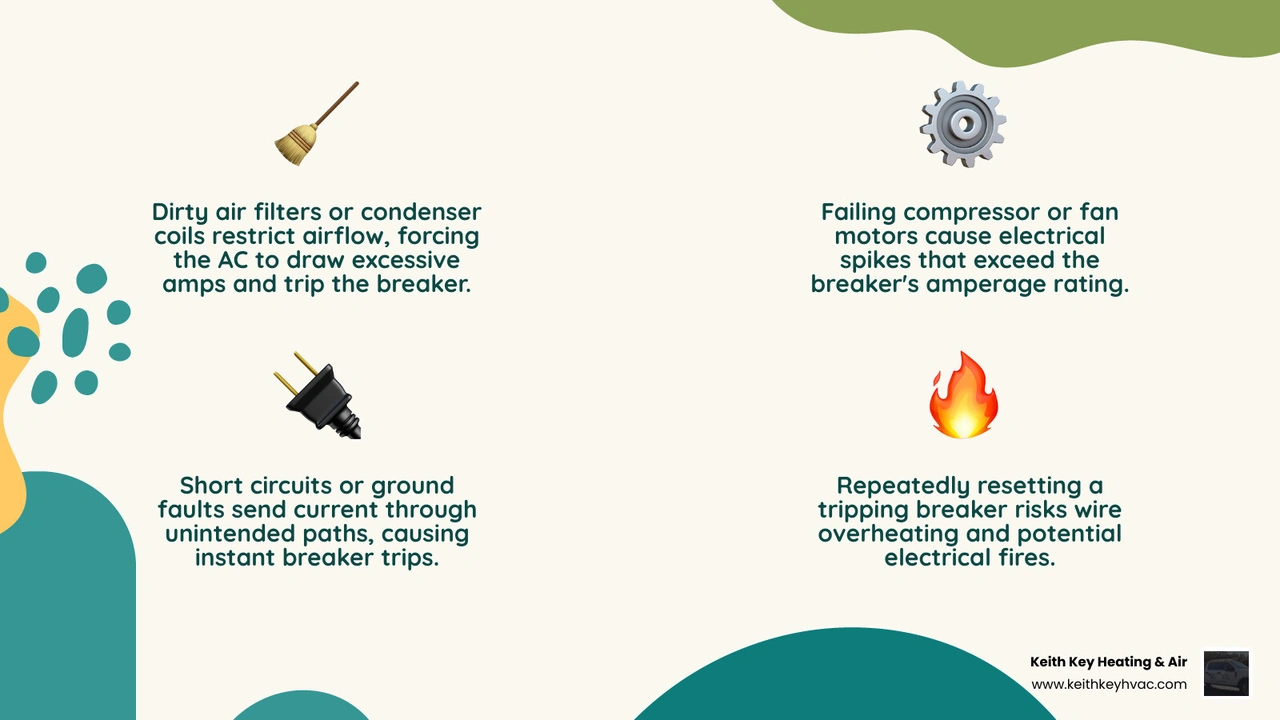

Here are the most common reasons it happens:

• Dirty air filter or condenser coils — restricted airflow forces the system to work harder, drawing more amps
• Failing compressor or fan motor — worn components spike electrical demand beyond the breaker's limit
• Short circuit or ground fault — damaged wiring causes electricity to take an unintended path, triggering an instant trip
• Loose wiring or a bad breaker — a worn-out or corroded breaker can trip even when the AC is running normally
• Refrigerant leak — low refrigerant makes the system run longer and strain harder than it should

If your breaker trips once and stays on after a reset, it may have been a fluke. If it keeps tripping — especially if it trips immediately after you reset it, or you smell burning — do not keep flipping it back on. That's a warning sign that something needs professional attention.

This guide walks you through what's likely causing the problem, what you can safely check yourself, and when it's time to call a licensed HVAC technician.

Understanding the AC Circuit Breaker and Why It Trips

To understand why your air conditioner is acting up, it helps to know what a circuit breaker actually is. Think of it as a vigilant sentry standing guard over your home's electrical system. For most central air conditioning systems in Florida, we use a double-pole breaker. Because an AC unit is a high-power appliance, it requires a 240-volt circuit, which is why the breaker looks twice as wide as the ones for your lights or wall outlets.

Every breaker has a specific amperage rating (usually between 30 and 50 amps for a residential AC). This rating is the "speed limit" for electricity. If your AC suddenly tries to pull 60 amps on a 40-amp circuit, the breaker snaps open. This is called "tripping."

The primary goal of this mechanism is fire prevention. When too much electricity flows through a wire, the wire gets hot—hot enough to melt the insulation and ignite the surrounding wood or drywall. By tripping, the breaker stops an electrical surge before it becomes a disaster. Detecting Ac Circuit Breaker Issues Early is vital for maintaining both your comfort and your home's safety.

Common Reasons Your AC Circuit Breaker Keeps Tripping What It Means

When we visit homes in Crawfordville or Tallahassee, we find that a tripping breaker is rarely a random event. It is a symptom of an underlying issue. Here is a breakdown of the most frequent culprits.

Restricted Airflow from Dirty Filters or Coils

It might seem strange that a bit of dust could trip an electrical switch, but the physics are simple. Your AC works by moving heat. If the air filter is clogged, the blower motor has to work significantly harder to pull air through the blockage. Imagine trying to breathe through a thick pillow; you’d quickly become exhausted. Your motor "exhausts" itself by drawing more and more electricity to keep up, eventually exceeding the breaker's limit.

Similarly, if the condenser coils (the fins on the outdoor unit) are covered in dirt, grass clippings, or pollen, they can't release heat into the outside air. This causes the system to run hotter and at higher pressures, forcing the compressor to pull "heavy" loads of electricity. Airflow restriction is the number one preventable cause of electrical strain.

Why an AC circuit breaker keeps tripping what it means for your safety

If you find yourself walking to the garage or the side of the house to flip that switch back on every few hours, you are playing a dangerous game. An ac circuit breaker keeps tripping what it means for your safety is that there is a persistent fault that could lead to electrical arcing.

Every time you reset a breaker into an active "short," a small spark (arc) can occur inside the panel or at the point of the fault. Over time, this heat degrades wire insulation and weakens the breaker itself. Repeatedly resetting a breaker without fixing the cause is a major fire hazard. If the breaker box feels hot to the touch or you notice a "fishy" or metallic burning smell, stop immediately. These are signs of overheating components that are on the verge of failure.

Mechanical Failures: Compressor and Fan Motor Issues

The outdoor unit (the condenser) is home to the two most power-hungry parts of your system: the compressor and the fan motor.

1. Fan Motor Failure: If the outdoor fan isn't spinning at the right speed, the heat stays trapped in the unit. The compressor then overheats and draws a massive spike in current.
2. Capacitor Strength: The capacitor is like a small battery that gives the motors a "kickstart." If it gets weak (a common issue in our Florida humidity), the motor struggles to start, drawing excess power and tripping the breaker.
3. Refrigerant Leak: When refrigerant is low, the AC has to run much longer to cool the house. This constant operation leads to mechanical strain, causing the compressor to overheat and eventually trip the safety switch.

Hard Starting and Grounded Compressors

The compressor is the "heart" of your AC. As it ages, it may experience "hard starting." This means it needs a massive amount of power—known as Locked Rotor Amps (LRA)—just to get moving. In some cases, we can install a hard start kit to provide that extra boost and save the compressor.

However, a more serious issue is a grounded compressor. This happens when the internal windings of the motor break down and touch the metal side of the compressor. This creates an internal short to the ground, causing an instant, violent trip of the breaker. Unfortunately, a motor burnout or grounded compressor usually means the unit needs to be replaced.

Troubleshooting Steps for Homeowners in Wakulla County

Before you call us for a service visit in Sopchoppy or Woodville, there are a few safe steps you can take to see if the fix is simple.

• Check the Air Filter: If it’s gray and fuzzy, replace it immediately. This is the most common "fix" for a breaker that trips after running for a while.
• Inspect the Outdoor Unit: Ensure there are no bushes, weeds, or debris (like fallen pine needles) choking the unit. Clear at least two feet of space around it.
• Thermostat Settings: Make sure the thermostat isn't set to an impossibly low temperature (like 60 degrees) during a 95-degree Tallahassee afternoon. This causes the unit to run non-stop, leading to an overload.
• Visual Inspection: Look at the wiring conduit leading to the outdoor unit. Do you see any signs of chew marks from squirrels or frayed wires? (Do not touch them; just look!)

When to Call a Professional for an AC Circuit Breaker That Keeps Tripping

While changing a filter is a great DIY task, electrical work is not. You should call Keith Key Heating & Air immediately if:

1. The Breaker Trips Instantly: If you flip the switch and it immediately pops back to the middle, you have a direct short.
2. Burning Smells or Buzzing Sounds: If you hear a sizzle or smell ozone/burning plastic near the AC or the electrical panel.
3. The Outdoor Fan Won't Spin: If you hear the unit humming but the fan is stationary.
4. The Breaker is Hot: A breaker that is physically hot to the touch is failing and needs professional amperage testing.

Our team uses specialized tools like megohmmeters and clamp meters to see exactly how many amps your system is pulling. We’ve been serving Wakulla, Leon, and Franklin Counties since 1991, and we know exactly how our local climate affects these systems.

Frequently Asked Questions about AC Breaker Trips

Can a dirty air filter really cause my breaker to trip?

Yes, absolutely. A clogged filter creates "static pressure," making the blower motor work significantly harder. This increased mechanical load leads to increased electrical draw. If the filter is dirty enough, the motor will eventually pull more amps than the breaker allows.

Is it safe to reset my AC breaker more than once?

We recommend resetting it only once. If it trips a second time, it is telling you that there is a real problem. Forcing it to stay on or repeatedly resetting it can cause permanent damage to your compressor or even start an electrical fire.

Why does my AC only trip the breaker on extremely hot days?

On very hot days, the "head pressure" in your system is naturally higher. This means the compressor is already working near its maximum capacity. If you also have a slightly dirty coil or a weakening capacitor, the extra heat of a Florida summer afternoon is often the "last straw" that pushes the electrical draw over the limit.

Conclusion

A tripping circuit breaker is your home’s way of screaming for help. While it can be frustrating to lose your cooling in the middle of a July afternoon, the breaker is actually protecting your home from much worse damage. By understanding that an ac circuit breaker keeps tripping what it means is an electrical safety response, you can take the right steps to fix the root cause.
