How to Reverse the Refrigeration Cycle in a Heat Pump

Why Understanding How a Heat Pump Reverses the Refrigeration Cycle Matters for Florida Homeowners

How a heat pump reverses the refrigeration cycle is simpler than it sounds — and knowing the basics helps you understand why your system heats and cools from a single unit.

Here is a quick answer:

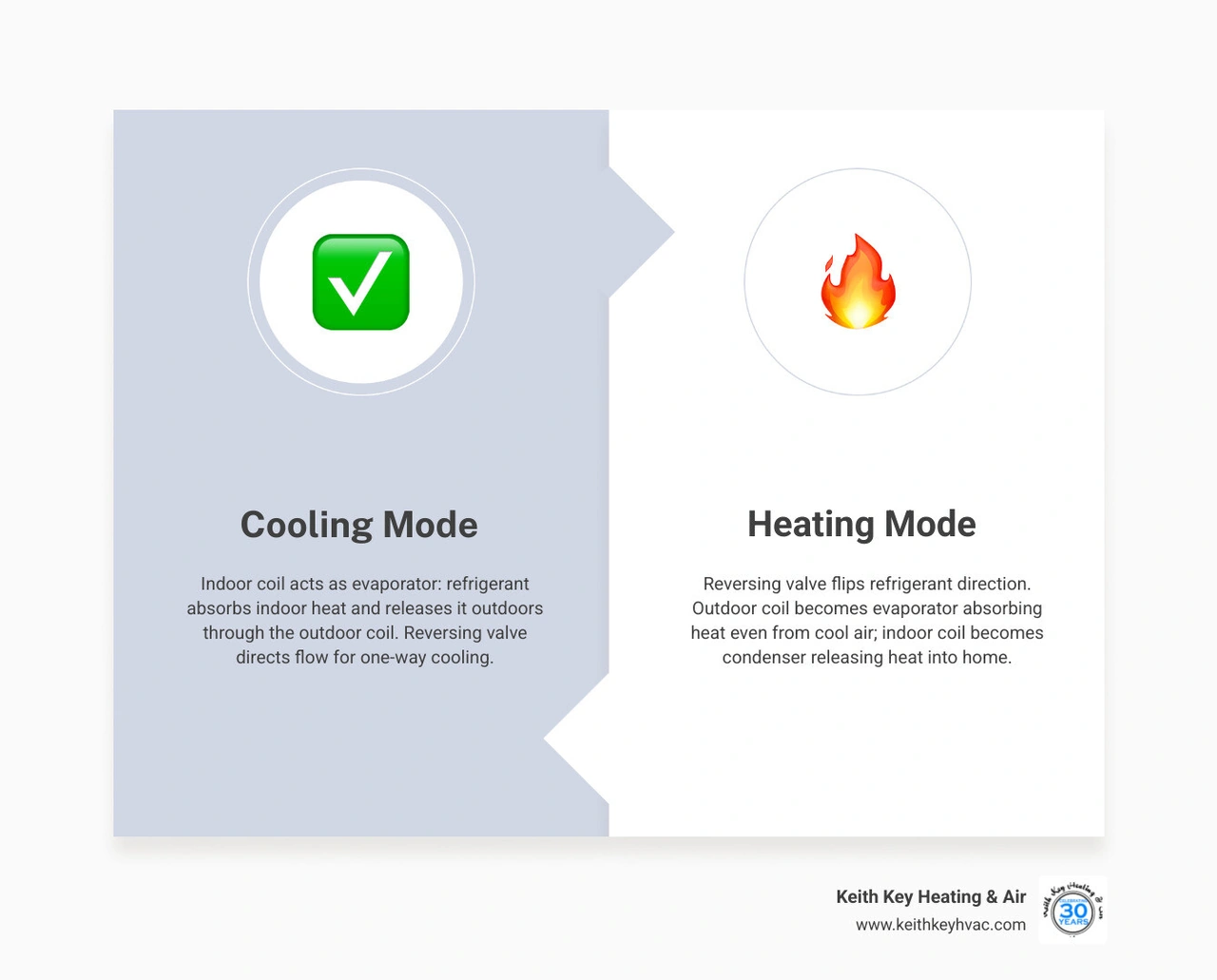

1. Cooling mode – Refrigerant absorbs heat from indoor air and carries it outside, where it is released. The indoor coil acts as the evaporator.
2. Heating mode – A component called the reversing valve flips the direction of refrigerant flow. Now the outdoor coil absorbs heat from outside air, and the indoor coil releases that heat into your home. The indoor coil acts as the condenser.
3. The reversing valve – This is the key part. It is a four-way brass valve in the outdoor unit that physically redirects refrigerant flow when your thermostat calls for a mode change.
4. Why it works even in cool weather – Refrigerant can be chilled to temperatures well below freezing, so it can still absorb heat from cool outdoor air on a mild Florida winter day.

In short, a heat pump does not generate heat — it moves existing heat from one place to another, and the reversing valve is what makes that two-way transfer possible.

Most homeowners in Crawfordville, Tallahassee, and across Wakulla, Leon, and Franklin Counties rely on their heat pump year-round. In Florida's climate, where winters are mild and summers are long, a heat pump is one of the most practical and efficient comfort systems available. But when something goes wrong — like the system getting stuck blowing warm air in July or cool air in January — it often traces back to one small but critical part: the reversing valve.

Understanding how this component works helps you recognize a problem early, have a smarter conversation with your technician, and make better decisions about repair or maintenance. This guide walks you through exactly how the refrigeration cycle reversal works, what can go wrong, and how to keep your system running the way it should.

Simple how a heat pump reverses the refrigeration cycle glossary:

• how a heat pump cools your home in summer
• how a heat pump works for heating and cooling

The Core Components of the Refrigeration Cycle

To understand how a heat pump reverses its process, we first need to look at how a standard refrigeration cycle works. Every traditional air conditioner and refrigerator relies on a closed loop of circulating chemical refrigerant. This cycle is governed by thermodynamics, moving heat from a cooler space to a warmer space using mechanical work.

Four primary components make this cycle possible:

• The Compressor: Often called the heart of the system, the compressor pump draws in low-pressure, cool refrigerant gas and compresses it. This mechanical squeeze drastically increases both the pressure and the temperature of the gas, turning it into a hot, high-pressure vapor.
• The Condenser: This is the heat exchanger where the refrigerant rejects its heat to the surrounding air. As the hot vapor flows through the condenser coils, a fan blows air across them. The heat leaves the refrigerant and warms the passing air. As it cools down, the refrigerant condenses from a hot gas into a high-pressure liquid.
• The Expansion Valve (or Metering Device): This component acts as a narrow doorway. The high-pressure liquid refrigerant is forced through this tiny opening, which causes its pressure to drop instantly. This sudden drop in pressure causes the temperature of the liquid to plummet, turning it into a freezing cold, low-pressure mixture of liquid and vapor.
• The Evaporator: This is the heat exchanger where the cold refrigerant absorbs heat from its surroundings. As warm air is blown across the cold evaporator coils, the refrigerant inside drinks up the thermal energy. As it absorbs this heat, the refrigerant boils and evaporates back into a low-pressure gas, ready to enter the compressor and start the cycle all over again.

In a standard cooling setup, the evaporator is located inside your home to absorb indoor heat, and the condenser is located outside to dump that heat into the Florida air. For a deeper look at this process, check out our guide on how a heat pump works for heating and cooling.

Air Conditioners vs. Heat Pumps: What is the Difference?

A standard central air conditioner is a one-way street. It is physically built to only pump heat out of your home. The indoor coil is always the evaporator (absorbing heat), and the outdoor coil is always the condenser (rejecting heat).

A heat pump, however, is a two-way system. It can run the exact same refrigeration cycle in both directions. This allows it to act as an air conditioner in the summer and a heater in the winter.

To accomplish this, a heat pump requires a few specialized components that standard air conditioners do not have:

1. A Reversing Valve: This is the mechanical switch that alters the path of the refrigerant.
2. Two Metering Devices: A standard air conditioner only needs one expansion valve near the indoor coil. A heat pump requires two metering devices—one for the indoor coil and one for the outdoor coil—so it can properly regulate refrigerant pressure regardless of which direction the fluid is traveling.
3. Check Valves: These are one-way bypass valves installed alongside the metering devices. They automatically open or close depending on the flow direction, routing the refrigerant through the active expansion valve while bypassing the inactive one.

Because of this clever design, a heat pump eliminates the need for a separate furnace, saving space and energy. You can read more about these benefits in our article on heat pump advantages over traditional HVAC.

How a Heat Pump Reverses the Refrigeration Cycle

The magic of the heat pump lies in its ability to swap the functions of its indoor and outdoor coils. When you switch your thermostat from cooling to heating, the system does not turn on a giant electric heating element or light a gas burner. Instead, it redirects the flow of refrigerant so that the outdoor coil becomes the cold evaporator and the indoor coil becomes the hot condenser.

This redirection is managed entirely by a component called the reversing valve, also known as a four-way valve. By changing the paths of the refrigerant lines leaving the compressor, the valve alters where the hot, compressed gas is sent first.

If you are curious about how this functions during the hottest months of the year, read more about how a heat pump cools your home in summer.

The Role of the Reversing Valve in How a Heat Pump Reverses the Refrigeration Cycle

The reversing valve is a heavy brass component located inside the outdoor unit, easily identified by its four copper pipe connections. Because of these four ports, it is technically referred to as a four-way valve.

To understand how it physically redirects high-pressure gas, we have to look inside its brass body:

• The Ports: The top port of the valve is the common discharge line. It is permanently connected to the outlet of the compressor, meaning hot, high-pressure gas always enters the valve through this port. The center port on the bottom is the common suction line, which is permanently connected to the inlet (suction side) of the compressor, drawing low-pressure gas back in. The remaining two bottom ports connect to the indoor and outdoor coils, respectively.
• The Slide and "Canoe": Inside the main brass chamber is a sliding piston mechanism. Attached to this slider is a small, U-shaped internal component often referred to by technicians as the "canoe" because of its rounded, hollow shape.
• The Pressure Differential: The slide is not moved by gears or motors. Instead, it is pushed back and forth by the high pressure of the refrigerant itself. By sealing off one side of the chamber and venting the other, the system creates a massive pressure differential. This pressure difference forces the slider to snap to one side, carrying the "canoe" with it.
• Directing the Flow: The "canoe" acts as a bridge between the center suction port and one of the side ports. Whichever side port is covered by the canoe is instantly connected to the compressor's suction line, making that coil the low-pressure evaporator. The uncovered side port is left open to receive the hot discharge gas directly from the top port, making that coil the high-pressure condenser.

Solenoid and Pilot Valve Control in How a Heat Pump Reverses the Refrigeration Cycle

Because the main slider requires a massive amount of physical force to move against high-pressure refrigerant, a small helper system is used to control it. This helper system consists of an electromagnetic solenoid coil and a tiny pilot valve.

Here is the step-by-step mechanical chain reaction that occurs when you change modes at your thermostat:

1. The Thermostat Signal: When you switch your thermostat to heating or cooling, it sends a 24-volt electrical signal down the "O" or "B" wire to the outdoor unit.
2. The Magnetic Field: This 24V signal energizes the solenoid coil, which is mounted on the outside of the reversing valve. The electric current creates a strong magnetic field.
3. The Pilot Valve Slider: This magnetic field pulls a tiny metal plunger inside the pilot valve. The pilot valve is a miniature version of the main valve, connected to the outer ends of the main brass body by three thin copper capillary tubes.
4. Chamber Venting: When the pilot plunger moves, it opens a path through the capillary tubes. This vents the high-pressure refrigerant from one side of the main slide chamber directly into the low-pressure suction line.
5. The Main Shift: With high pressure on one side of the main slide and low pressure on the vented side, the slider is pushed across the chamber. This shifts the internal "canoe" and instantly reroutes the main refrigerant flow.

It is worth noting that different manufacturers handle this control signal differently. For example, some brands energize the solenoid coil during cooling mode (using the "O" terminal), which is the industry standard for most systems. Other manufacturers, such as Ruud and Rheem, design their systems to energize the solenoid during heating mode (using the "B" terminal). If the solenoid loses power due to a broken wire, the valve defaults to its de-energized position.

Heating vs. Cooling Mode: Step-by-Step Flow

To visualize how the refrigerant moves through your system in June 2026, let's compare the flow paths of both modes side-by-side.

*Note: Solenoid states may vary depending on your specific heat pump brand's default settings.

During winter operation in Tallahassee, the outdoor air might feel chilly to you, but it still contains a massive amount of thermal energy. Because the outdoor expansion valve drops the refrigerant temperature to well below freezing, the outdoor coil remains colder than the outdoor air. This temperature difference allows the refrigerant to absorb heat from the North Florida air and carry it inside to keep your home warm. For more on local heat pump options, take a look at our services for an electric heat pump in Tallahassee, FL.

Troubleshooting and Maintaining Reversing Valve Efficiency

Because the reversing valve is constantly exposed to high pressures, temperatures, and physical movement, it must be kept in optimal condition. If the valve fails or gets stuck, your heat pump loses its ability to switch modes, essentially turning your advanced year-round system into a single-mode unit.

Maintaining your system's overall health prevents these mechanical failures. Learn more by reading about proper heat pump maintenance and discover practical tips on keeping your heat pump efficient.

Signs of a Failing Reversing Valve

When a reversing valve begins to fail, it presents several distinct warning signs. Recognizing these signs early can save you from being left without heating or cooling when you need it most:

• Stuck in One Mode: If you switch your thermostat to "Heat" but the system continues to blow cold air (or vice versa), the valve may be mechanically stuck, or the solenoid coil may have failed.
• Refrigerant Bypass (Leaking Internally): If the internal slide or "canoe" does not seal perfectly against the ports, hot discharge gas will leak directly back into the suction line without traveling through the coils. This bypass causes a severe drop in heating and cooling capacity, making the system run constantly while failing to reach your thermostat's set temperature.
• Strange Noises: A valve that is struggling to shift due to low pressure or physical debris may make loud clicking, clunking, or sustained whooshing noises when a mode change is initiated.
• Weak Compressor Pressure: Because the reversing valve relies on the pressure difference created by the compressor to shift its slide, a weak or aging compressor may fail to generate enough pressure to move the valve. In this case, the valve is not broken, but it cannot function because of the weak compressor.

The Importance of Professional Tune-Ups

Reversing valve issues are highly technical and involve working with high-voltage electricity and pressurized chemical refrigerants. This is why professional maintenance is so critical for homeowners in Crawfordville and Sopchoppy.

During a seasonal tune-up, a professional technician will:

• Measure the temperature difference across the reversing valve lines to ensure there is no internal refrigerant bypass.
• Check the electrical voltage and resistance of the solenoid coil to prevent electrical failures.
• Inspect the system's refrigerant charge, as low refrigerant levels can prevent the valve from creating the pressure differential needed to switch modes.
• Verify that the thermostat wiring and control board are sending clean 24V signals to the valve.

To learn more about what our team does during these visits, read our guide on what a professional heat pump tune-up include and check out our specialized heat pump tune-up guide for Gulf Coast homeowners.

Frequently Asked Questions about Heat Pump Reversal

What does a heat pump reversing valve do?

The reversing valve is the component that allows a heat pump to provide both heating and cooling from a single outdoor unit. It physically redirects the path of the hot refrigerant gas leaving the compressor, swapping the roles of the indoor and outdoor coils depending on whether your home requires heating or cooling.

Why does my heat pump blow cool air during winter?

There are two common reasons for this. First, heat pumps deliver air that is typically around 90°F to 100°F. While this is warm enough to heat your home to 72°F, it is cooler than human body temperature (98.6°F), so it can feel cool to the touch compared to the hot blast of a traditional gas furnace.

Second, your heat pump may be in its defrost cycle. During cold weather, moisture can freeze on the outdoor coils. To melt this ice, the heat pump temporarily reverses itself back into cooling mode to send hot gas to the outdoor coil. During this brief cycle, your backup electric heat strips turn on to prevent cold air from blowing into your home.

Can a homeowner unstick a reversing valve?

No. Homeowners should never attempt to unstick a reversing valve themselves. Some online forums suggest tapping the valve body with a hammer or screwdriver to free a stuck slide. Doing this is highly dangerous and can easily dent the thin brass body, permanently ruining the valve, or puncture the copper lines, causing a costly and hazardous refrigerant leak. If your valve is stuck, always contact a licensed HVAC professional.

Conclusion

The reversing valve is a brilliant piece of engineering that turns a standard cooling cycle into a highly efficient, year-round comfort system. By understanding how a heat pump reverses the refrigeration cycle, you can better appreciate the work your system does to keep your home comfortable through every season in Woodville and Tallahassee.
