Why Your Crawfordville AC Keeps Tripping the Breaker During Peak Afternoon Heat

That Mid-Summer Afternoon Silence: When the AC Suddenly Shuts Down

July in Florida is unforgiving, and understanding why your Crawfordville AC keeps tripping the breaker during peak afternoon heat is the difference between a quick fix and a total system failure. The sun is beating down, the house is warming up fast, and suddenly, the familiar hum of your outdoor unit goes completely silent. It is the hottest part of the day, and you are standing in front of your electrical panel wondering if you should just flip the switch back on.

At Keith Key HVAC, a sudden shutdown like this is a frequent regional pattern our technicians see during peak summer months, rather than an isolated incident. The intense summer heat and high humidity make an afternoon breakdown feel like an immediate emergency. When your cooling system stops dead in its tracks, you have to decide whether to simply reset the breaker or keep the system off to prevent further damage. If you are unsure, it is always best to rely on professional HVAC services. Protecting your equipment is the priority, so if you suspect a major issue, contact our team for a service call right away.

The Immediate Safety Check: Is It Safe to Reset the Breaker?

When your air conditioner abruptly loses power, your first instinct is usually to head straight to the electrical panel. However, a tripped breaker is a critical safety mechanism doing its exact job: protecting your home from a severe electrical overload. The breaker cuts the power to stop wires from overheating, melting, or sparking.

Warning: You should never repeatedly reset a tripped breaker. Forcing a breaker to stay on when the system is demanding too much power significantly increases the risk of electrical fires.

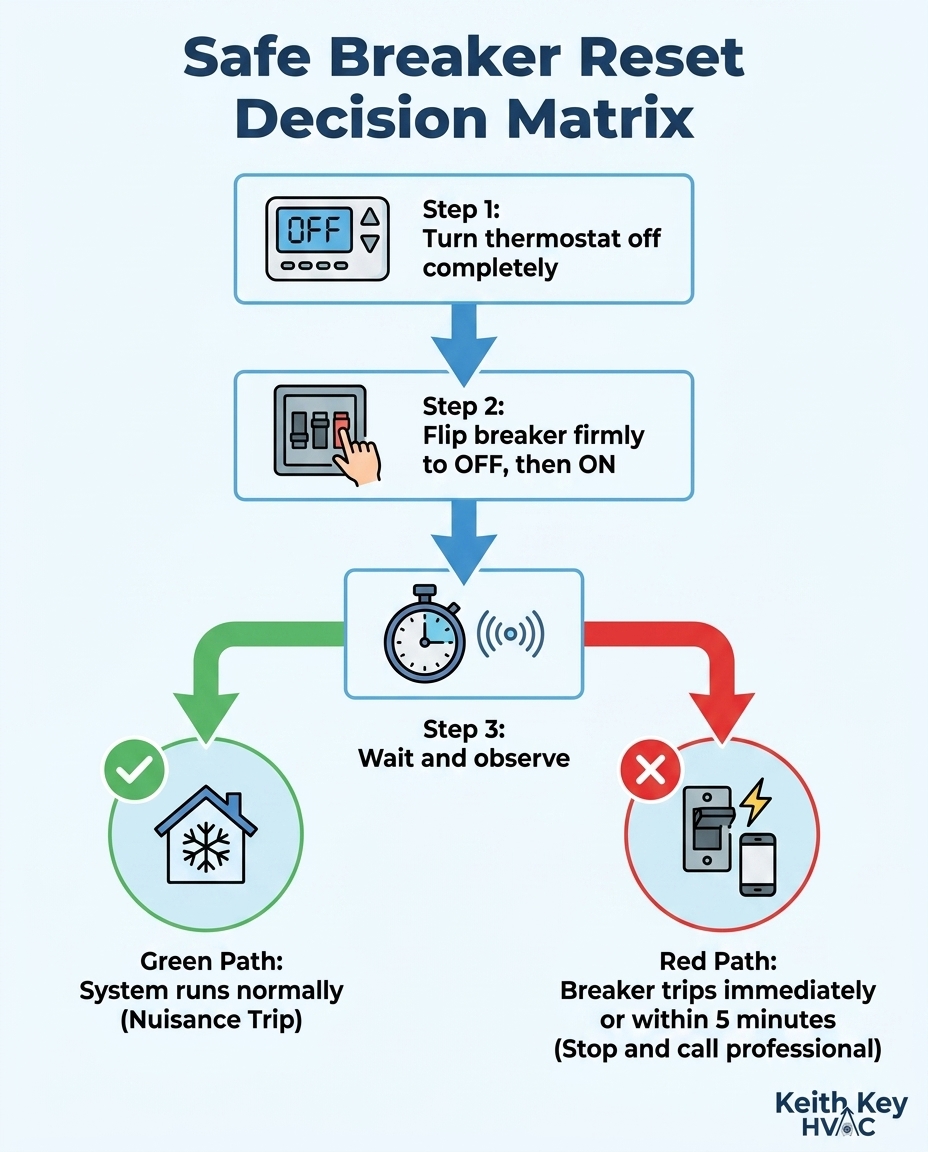

If you are a homeowner in Crawfordville dealing with this sudden loss of cooling, there are strict criteria for performing a safe, one-time reset to see if the issue was just a temporary power fluctuation. Follow these exact steps:

1. Turn off the thermostat completely: Never reset a breaker while the thermostat is actively calling for cooling. Switch your indoor thermostat to the "Off" position.

2. Locate the correct breaker: Find the dedicated double-pole breaker for your air conditioning condenser in your main electrical panel.

3. Flip firmly to OFF, then ON: A tripped breaker often sits in the middle position. Push the switch firmly all the way to the "Off" side until you feel a click, and then push it firmly back to the "On" side.

4. Wait and observe: Turn your thermostat back to "Cool" and lower the temperature. Go outside and listen to the condenser unit.

If the system turns on and runs smoothly, you may have just experienced a temporary grid surge. But if the breaker trips a second time—either immediately or after a few minutes—the system must remain off. A second trip confirms a hard failure that requires a professional assessment.

Understanding the Physics of Mid-Afternoon Electrical Strain

To understand why your system fails when you need it most, you have to look at the extreme thermal loads placed on your equipment. An air conditioner compressor naturally draws a higher amount of electrical current, known as amperage, upon startup. This surge is normal, but this startup spike worsens exponentially under extreme heat.

During the mid-afternoon, solar heat gain reaches its peak. The sun beats down on your home and your outdoor condenser unit. The system is forced to work substantially harder to reject the heat from inside your house into an already sweltering outdoor environment. Coastal-adjacent humidity combined with this peak solar heat gain creates extreme thermal loads on the outdoor condenser. As the compressor works harder to compress the refrigerant, it draws more electricity. Eventually, this power draw crosses the safety threshold of your circuit breaker, causing it to trip.

How Heat Multiplies Amperage Draw

There is a direct relationship between outdoor temperatures and electrical resistance. As the temperature of electrical components and wiring rises, their resistance to electrical flow also increases. To push the same amount of power through hotter, more resistant wires, the system pulls more current.

This becomes a serious problem for an aging compressor struggling against high head pressure. Head pressure is the pressure of the refrigerant as it leaves the compressor. In extreme heat, the refrigerant does not cool down as efficiently in the outdoor coil, causing the head pressure to skyrocket. The compressor has to physically push harder against this pressure. In our years of servicing cooling systems across Crawfordville, our team consistently sees a massive amperage spike around 3 PM during the summer because the compressor is fighting peak outdoor temperatures, peak humidity, and peak internal pressures all at once.

Common Culprits Behind Afternoon Electrical Overloads

When that afternoon electrical overload happens, it is rarely a mystery to our service crews. High temperatures expose the weakest links in your cooling system. We typically see that by the time July rolls around, components that have been silently wearing down finally give out under the strain. Here are the specific hardware issues that trigger a breaker trip when exposed to high heat.

The Role of the Run Capacitor

In our experience responding to local summer service calls, capacitors are the most common component to fail during extreme heat waves. A run capacitor acts like a large battery that stores electricity to give the compressor and fan motors the extra jolt of power they need to start and keep running smoothly.

These cylindrical components are highly sensitive to heat. As they degrade, their ability to store and deliver that necessary electrical charge drops. Without the capacitor's help, the compressor experiences a "hard start." It tries to pull all the required starting power directly from your home's electrical panel. This massive, unassisted power draw instantly trips the breaker. Symptoms of a weak capacitor include a humming sound coming from the condenser unit while the fan remains completely still.

Airflow Restrictions and Overheating

It might seem strange that a dirty air filter inside your house can cause an electrical overload at the breaker panel outside, but the two are directly connected. Your air conditioner relies on a steady volume of airflow to absorb heat inside and release it outside.

When you have a severely clogged air filter or a condenser coil blocked by dirt, leaves, and debris, you restrict this vital airflow. The heat gets trapped inside the system. The compressor runs longer and hotter, desperately trying to reach the temperature set on your thermostat. This constant, overheating operation forces the system to overdraw power until the breaker finally intervenes.

Other Frequent Causes:

• Grounded or shorted compressors: The electrical windings inside the compressor can break down over time. If a wire touches the metal casing, it creates a direct electrical short, causing an immediate and dangerous power draw.

• Loose electrical connections: Metal expands in the heat and contracts when it cools. These constant temperature swings can loosen electrical wiring over the years. Loose wires cause electrical arcing, which generates intense heat and trips the breaker.

Nuisance Trip vs. Failing Component: A Decision Matrix

When you are standing at the electrical panel, you need a clear framework to understand if the issue is a one-off fluke or a critical hardware failure. Differentiating between the two protects your home and your wallet.

A "nuisance trip" is a rare event caused by a temporary power grid fluctuation or an extreme, unprecedented heat load. For example, if your system experiences an unusual amperage spike at 3 PM on the hottest day of the decade, the breaker might trip simply because the safety threshold was briefly crossed. If you follow the safe reset procedure and the system runs perfectly for days afterward, it was likely a temporary thermal overload.

On the other hand, a failing part presents a consistent, repeatable problem. If the breaker trips immediately upon startup, or consistently after a few minutes of operation, you are dealing with a hard failure.

• Trips once, resets normally, runs fine for days. — Likely Cause: Nuisance trip / temporary grid surge. — Required Action: Monitor the system. No immediate repair needed.

• Trips immediately the second you turn the thermostat on. — Likely Cause: Direct electrical short or grounded compressor. — Required Action: Leave breaker OFF. Call a professional immediately.

• Trips after 5 to 15 minutes of running. — Likely Cause: Overheating, failing capacitor, or severe airflow restriction. — Required Action: Check air filters. If clean, leave OFF and call for service.

• Condenser hums but fan does not spin before tripping. — Likely Cause: Failed run capacitor or seized fan motor. — Required Action: Leave breaker OFF. Requires professional component replacement.

Remember, DIY diagnostics must stop at the breaker box. Opening the high-voltage AC panel requires a licensed professional.

The Hidden Dangers of Forcing a System to Run

Ignoring a tripping breaker and continually forcing your system to run is one of the most dangerous things a homeowner can do. Circuit breakers are not suggestions; they are strict safety gates designed to prevent catastrophe.

The National Electrical Code (NEC) sets stringent standards regarding circuit breaker safety mechanisms for a reason. When a breaker trips, it means the electrical current has exceeded the safe carrying capacity of the wires. If you repeatedly bypass this safety mechanism by flipping the breaker back on, you risk melting the insulation right off the wires. This exposes bare, energized copper, leading directly to catastrophic electrical fires.

Furthermore, forcing electricity into a grounded or shorted system can permanently destroy your AC compressor. A failing compressor might be salvageable if caught early, but repeatedly sending high voltage into a shorted motor will burn the internal windings beyond repair, turning a manageable service call into a complete system replacement.

From an efficiency standpoint, the Department of Energy (DOE) guidelines on HVAC performance note that a system drawing excess power is wasting massive amounts of energy long before it completely fails. If your system is struggling through the heat in Crawfordville, that excess electrical draw is showing up on your monthly utility bill. Protecting your home means respecting the breaker's warning.

Frequently Asked Questions About AC Breaker Trips

Understanding the specific reasons behind electrical failures can help you make better decisions when the heat is bearing down. Here are the most common questions we receive about afternoon power issues.

Why does my AC trip the breaker on hot days?

Hot days force the compressor to work harder against higher pressures, drawing more electrical current. As outdoor temperatures rise, the refrigerant inside your system does not cool down as efficiently, leading to high head pressure. The compressor has to physically push harder to circulate the refrigerant, which requires more electricity. When this excess current crosses the safety threshold of the circuit breaker—often seen as a massive amperage spike at 3 PM—the breaker trips to prevent the wires from overheating.

Is it safe to turn my AC breaker back on?

It is generally safe to reset the breaker exactly one time to rule out a temporary nuisance trip. You must ensure the thermostat is turned completely off before attempting the reset. Flip the breaker firmly to the off position, then back to the on position. If the system starts up and runs normally, it may have been a fluke. However, if it trips again immediately or within a few minutes, you must leave it off and call a professional.

How many times can I reset my AC breaker?

You should never reset an AC breaker more than once. A circuit breaker that repeatedly trips is signaling a severe electrical fault, such as a grounded compressor or a short circuit. Forcing the breaker back on multiple times sends high voltage into a failing system, which can permanently destroy the compressor. More importantly, repeated resets can melt wire insulation and easily start an electrical fire inside your walls.

Why does my AC trip the breaker after 5 minutes?

A delayed trip usually indicates an overheating issue rather than a direct electrical short. If there were a direct short, the breaker would trip the instant the system tried to turn on. When it takes a few minutes, the system is likely starting up fine but then drawing too much power as it runs. Our technicians commonly find this is caused by severely restricted airflow from a dirty filter, low refrigerant levels, or a failing motor that slowly overheats as it operates.

Can a bad capacitor cause the breaker to trip?

Yes, a failing capacitor is one of the most common reasons for a tripped breaker. The capacitor acts like a battery that provides the initial jolt of energy the compressor needs to start up. When the capacitor degrades and fails, the compressor tries to pull all that necessary starting power directly from your home's electrical panel. This massive, unassisted power draw overloads the circuit and instantly trips the breaker.

Should I pour water on my outside AC unit to cool it down?

No, pouring water on an actively overheating unit can cause thermal shock or create severe electrical hazards. While lightly hosing off dirt and debris during routine, powered-down maintenance is standard, dousing a hot, struggling system is dangerous. The rapid temperature change can damage internal components, and introducing water to a system that is already experiencing electrical faults is a major safety risk. The best approach is to leave the unit off so it can cool naturally.

Get Prompt Emergency Help Before the Heat Peaks

A tripping breaker is never something to ignore; it is a direct cry for help from an overworked cooling system. When your equipment shuts down during the intense July heat, waiting to address the problem only guarantees a more expensive breakdown later. You need to resolve the underlying electrical strain before the next major heatwave hits and leaves your family completely without cooling.

At Keith Key HVAC, we understand the local climate because we live and work here. We provide prompt, emergency HVAC response tailored specifically to Crawfordville homeowners when their systems fail during the hottest part of the day. Do not let a failing component turn into a total system replacement. If you are struggling with why your Crawfordville AC keeps tripping the breaker during peak afternoon heat, contact our team for a service call today. We will diagnose the electrical strain, replace the failing parts, and restore your comfort safely and efficiently.
